Wiring for 2024 Jeep Wagoneer S
No.

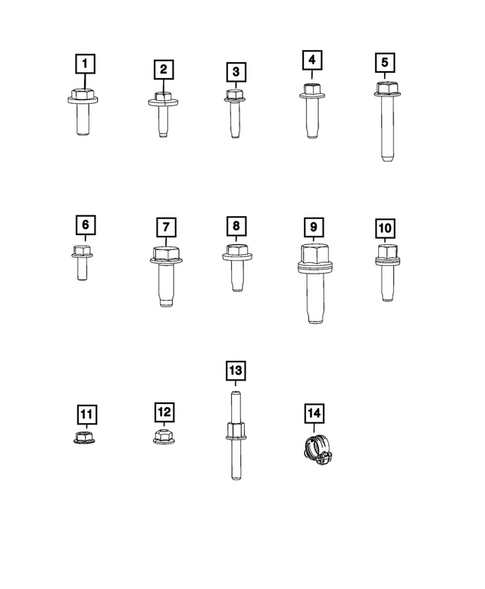

Part # / Description / Price
Price
2
Hex Head Bolt And Washer
Mopar
Mopar Description: Torx T-30. This repair screw is only used in place of production screw 06104368aa if the hole is stripped out.
MSRP $6.00
$3.65
MSRP $6.00
$3.65
4
Hex Flange Head Bolt Mopar
Mopar Description: Frame To Body [M8 x 25]. Oil Pan to Cylinder Crankcase M8x25. HCU Bracket. Intermediate Flange to Transmission Case [M8x25]. M8x1.25x25.00.
MSRP $16.70
$10.26
MSRP $16.70
$10.26
5
MSRP $2.05
$1.23
7
Screw Mopar
Mopar Description: M10x1.50x30.00. Plastic Corner Bracket To GAWR Bracket. Exhaust pipe assembly to rear engine mount bracket. Skid Plate To Frame. Bracket To Hitch. Transfer Case Skid Plate To Body. HV Wiring Upper Trough To Rear EDM. HV Wire Upper Trough To Rear EDM.
MSRP $7.35
$4.36
MSRP $7.35
$4.36
9
Hex Head Screw And Washer Mopar
Mopar Description: Ground Cable To AC/DC Converter. Front Support Bracket To Timing Cover. M8x1.25x25.00. 12v battery grnd to idcm. Pim case gnd strap to pim. Ground strap to engine. HV Wire Lower Trough To Rear EDM. IDCM To Ground. HV Wiring Lower Trough To Rear EDM.
MSRP $4.70
$2.66
MSRP $4.70
$2.66
10
Trailer Hitch Receiver Bolt Mopar
Mopar Description: M14x2x48. Beam To Rail M14x2.00x48.00. Hitch To Rail M14x2.00x48.00. HV Wire Lower Trough To Rear EDM.
MSRP $6.00
$3.65
MSRP $6.00
$3.65
13
Double Ended Stud Mopar
Mopar Description: EGR Valve To Front Cover. Housing attaching. Water inlet connector to cyl block. [M6x1.0x60.0]. Through to pim.
MSRP $3.95
$2.37
MSRP $3.95
$2.37
